8 inch Windows 10 pro High precision GPS Rugged Tablet ST8

8 inch Windows 10 pro

RAM 4GB ROM 64GB

Nework/HDMI/USB 3.0 port

High precision GPS

  • 产品说明

8 inch Windows 10 pro High precision GPS Rugged Tablet ST8

1. Android, Windows， linux optional
2. intel z8350, MT6753, RK3399, MT6771 optional
3. 8 inch 1920*1200，max brightness, 400 nits, capacity touch panel
4. RAM 3GB/4GB/6GB/8GB optional， ROM 32GB/64GB/128GB/256GB optional
5. 4G LTE/WIFI/GPS/BT, NFC optional
6. USB3.0, USB2.0, Micro USB, DC 3.5*1.35, 耳机孔3.5
7. 2D barcode，UHF，fingerprint，high precision GPS，optional
8. RJ45，RS232 optional
9. back and bottom POGO pin optional
10. desk plastic docking，metal vehicle docking, optional

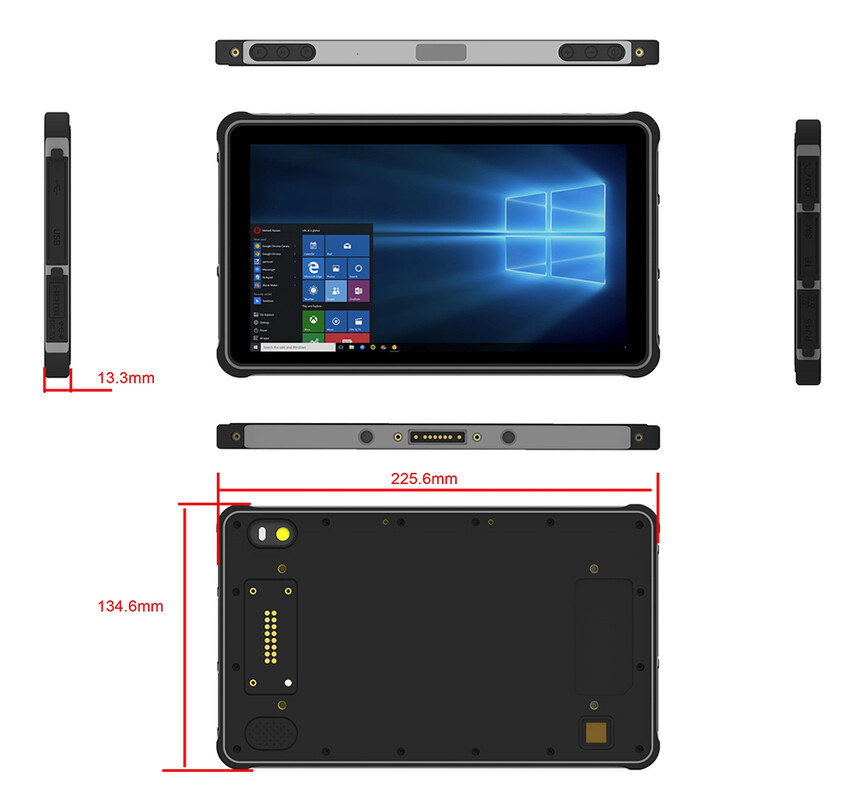

11.  size 225.6*134.6*13.3mm， net weight 0.6kg



ITEMDESCRIPTIONdetail
OSwindows 10 home/pro/iot
CPUintel cherry trail Z8350
RAM/ROM4GB/64GB
LCD8 inch1920*1200；max 500 nits sunshine readable
Touch screen10 point touch
support tylus
support thin glove touch
Camera2M/5M
Power and batterybattery capacity 7800mAh
3.5*1.35mm, 5V 3A DC in putMagnetic charger
WWAN4G LTE, 3G WCDMA, GSM, Quectel EC25AUGC4G Fre:
FDD: B1,B2, B3, B4, B5, B7, B8, B28
TDD: B40
B34
WCDMA:B1, B2,B4,B5,B8
GSM: B2, B3, B5, B8
GPSbaidou,GPS, glonass
wifi802.11a b c, g,n wireless internet  Wireless AP ( Mobile AP )2.4G, 5Gintel 3165
BLUETOOTH4.0 version
NFC13.56 MHz, distance 5cm or above
SPEAKER1.5 watt
Sensor1. light sensor
2. acceleration/gravity

size228*137*12.8mm
Multi-media
(Hardware decoding)		Photo ViewerBMP, JPG, GIF, PNG
Video FormatMEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
Audio FormatMP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
language 语言multi language
interface
in/out port		1.USB2.0*1 USB3.0*1
2. Micro USB*1
3. RJ45*1 need special cable (optional)
4. bottom pogopin*1, USB and serial
5. back pogopin*1
6. DC*1 3.5*1.35
7. microphone+earphone
8. mini HDMI
9.RS232*1 (need special cable, optional)
10. micro SD*1
11. SIM card*1
Pogopin definition1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V)
2. 8pin in bottom； （1USB, 1 RS232， 1 UART， 5V)
casing materialABS/PC/rubber TPU/aluminum
buttonV+ -, Power, P, F, H
2D barcode modulehoneywell N3680optional
UHF900MHzoptional
fingerprintsupportoptional
Front NFCunder the screen, the distance is 3-5cm, mifare one is optionaloptional
high precision GPS0.25-1 meter high precision GPS, support GPS, beidou, glonassoptional
accessories1. USB cable
2. charger
3. handstrap
4. car holder
5. docking station
6. car charger
7. white box, no logo
proof rate1. water proof IP65
2. Drapping proof 1.2 meter
Certification1. 810G
2. CE,FCC
Temperature1. storate temperature -25 to 80 degree
2. operation temperature -20 to 60 degree
